Miniature profile rail guides

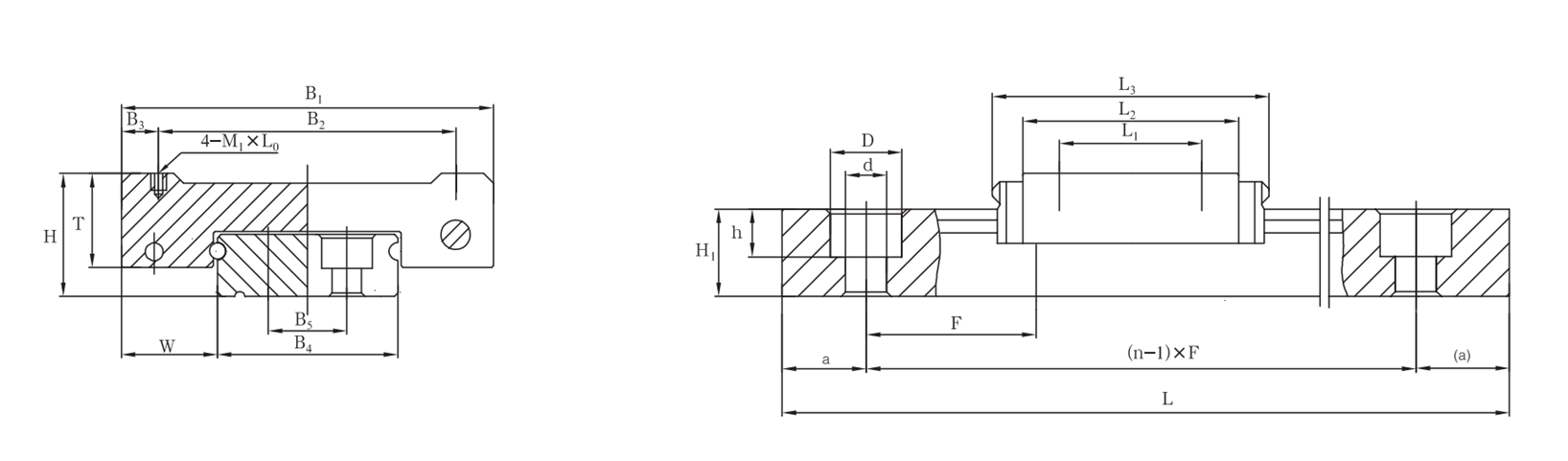

Dimensions of block (mm) | Smallest end size | Weight | |||||||
B4 | H1 | B5 | d | D | h | F | a | Rali kg/m | |
7 | 4.8 | 0 | 2.4 | 4.2 | 2.3 | 15 | 5 | 0.22 | |
9 | 6.5 | 0 | 3.5 | 6 | 3.5 | 20 | 7.5 | 0.38 | |
12 | 8 | 0 | 3.5 | 6 | 4.5 | 25 | 10 | 0.65 | |
14 | 5.2 | 0 | 3.5 | 6 | 3.2 | 30 | 10 | 0.51 | |
15 | 10 | 0 | 3.5 | 6 | 4.5 | 40 | 15 | 1.06 | |
18 | 7 | 0 | 3.5 | 6 | 4.5 | 30 | 10 | 0.91 | |
24 | 8.5 | 0 | 4.5 | 8 | 4.5 | 40 | 15 | 1.49 | |
42 | 9.5 | 23 | 4.5 | 8 | 4.5 | 40 | 15 | 2.86 | |
